Hettich Quadro 4D - 600mm - Left & Right - Soft Close

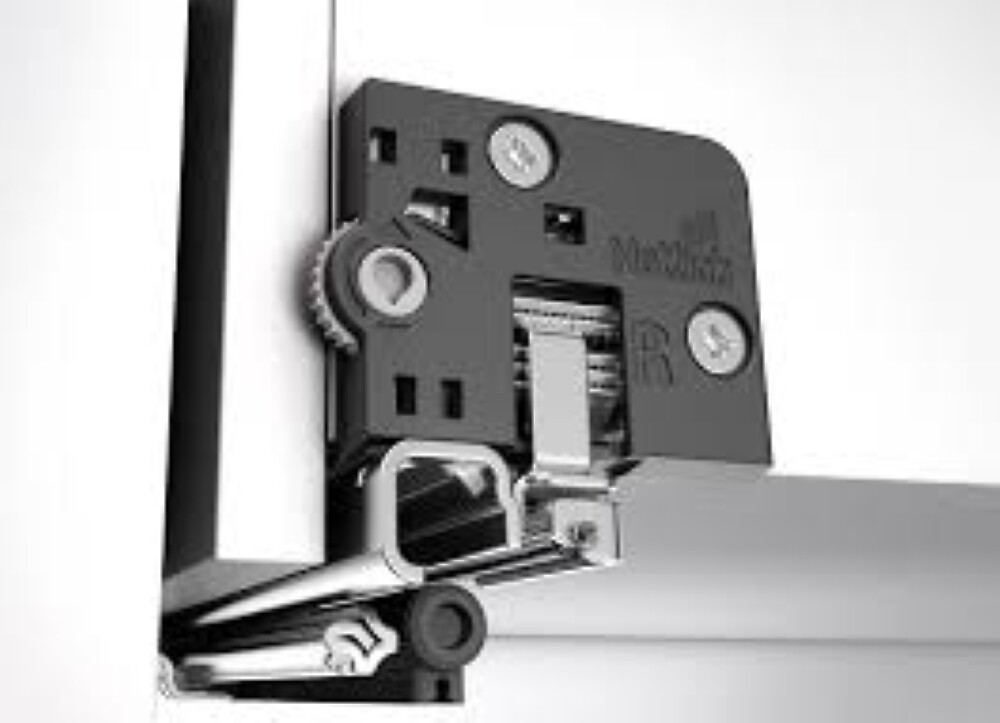

• Convenient Slide on installation with 4D catches and tilt adjustment
• Integrated Silent System
• Load capacity up to 30 kg for standard applications;
  Version available for particularly light drawers up to 10 kg
• Optional can be retrofitted with Push to open Silent: convenient opening mechanism in combination with silent and soft closing; can be retrofitted with synchronisation
• Tool-less, intuitive adjustment of the drawer front panel:
  Height adjustment up to + 2 mm,
  Side adjustment up to +/- 1.5 mm (max. drawer side profile thickness 15 mm),
  Depth adjustment up to +/- 2 mm,
  Tilt adjustment
• Load capacity to EN 15338, Level 3
• Galvanised steel

Box Qty: 1 Pair

Advice:​  4D catch and tilt adjuster must be ordered separately
